Denodo Governance Bridge for Microsoft Purview - User Manual

Last modified on: 26 Nov 2024

Download original document

You can translate the document:

This is the user manual for Denodo Governance Bridge for Microsoft Purview. If you are using IBM® InfoSphere® Information Governance Catalog (IGC), check the Denodo Governance Bridge for IGC - User Manual. Alternatively, if you are using Collibra Platform, check the Denodo Governance Bridge for Collibra - User Manual.

Overview

Denodo Governance Bridge for Microsoft Purview retrieves metadata from Denodo Platform, transforms, and upserts it to Purview assets and relationships.

The following metadata is fetched from Denodo Platform:

•     Databases
•     Data Sources
•     Base Views and Derived Views
•     Columns

To carry out this integration, Denodo Governance Bridge for Microsoft Purview needs the creation of a metamodel that is necessary to provide a structure for representing Denodo elements as Purview assets. The table below shows how the data is mapped:

Denodo	Purview Definition Type
Database	Denodo_DB
Data Source	Denodo_Datasource
Base View and Derived Views	Denodo_Denodo_View
Column	Denodo_Column

Installation

The Denodo Governance Bridge distribution consists of three folders that contains the distribution for each module:

• denodo-igc-governance-bridge-<version> for the Denodo Governance Bridge for IGC.
• denodo-collibra-governance-bridge-<version> for the Denodo Governance Bridge for Collibra.
• denodo-purview-governance-bridge-<version> for the Denodo Governance Bridge for Microsoft Purview.

Installation of the Denodo Governance Bridge for Purview

The distribution of the Denodo Governance Bridge for Purview consists of:

• Command-line executable scripts for Windows and Linux (/bin folder).

• Configuration files: application.properties, log4j2.xml and input.json(it is only an example to execute the synchronization  service).(/conf folder).

• Java libraries (/lib folder)

• Governance Bridge application jar: denodo-purview-governance-bridge-<version>-jar

• Denodo driver jar: denodo-vdp-jdbcdriver-dist-<version>-full.jar

If you need to use a different Denodo driver version than the one that is distributed, you have to replace this jar with the Denodo driver of the proper version.

In order to install the Denodo Governance Bridge for Purview, just download the .zip file and extract the tool into the desired folder.

Before running the Denodo Governance Bridge for Microsoft Purview, the user has to review and complete the application.properties file. It has some default properties that can be reset and some connection information that has to be configured. See the section on the Configuration of the Denodo Governance Bridge for Microsoft Purview for more detailed information.

After completing the configuration and running the script denodo-purview-governance-bridge.sh|bat available in the /bin folder, you can trigger the application.

Configuration of the Denodo Governance Bridge for Microsoft Purview

The application.properties file, available in the /conf folder, allows the user to set the properties required to run the application.

Purview connection properties

• purview.tenant.id: unique identifier of the Azure Active Directory instance
• purview.client.id: client identifier of the Azure application used for the access
• purview.client.secret: the client secret of the Azure application used for accessing
• Purview.endpoint: URL to Microsoft Purview service.

Denodo connection properties

• denodo.driver-class-name: the class name of the Denodo JDBC driver
• denodo.host: Denodo host name
• denodo.username: username used to connect to Denodo Platform
• denodo.password: password used to connect to Denodo Platform. It could be encrypted or clear. See the How to encrypt passwords section for a detailed explanation.
• denodo.url: Denodo JDBC connection URL
• denodo.catalog.url: Denodo Data Catalog URL

Governance bridge for Purview properties

• prefix.qualilified.name: Prefix for building the qualified name parameter of the assets in Purview.

Usage

Denodo Governance Bridge for Microsoft Purview

Create Purview metamodel

The Denodo Governance Bridge for Microsoft Purview needs a specific metamodel on the Microsoft Purview instance. The first time the synchronization service is executed, several entity and relationship definitions are created in Purview.

Asset Types

Asset Type	Description	Parent Asset Type
Denodo_db	Represents a Denodo database	azure_resource
Denodo_Datasource	Represents a Denodo data source	azure_resource
Denodo_view	Represents a Denodo base view or derived view	Purview_Table, DataSet
Denodo_column	Represents a Denodo column	DataSet
Denodo_process	Represents the lineage between two entities	Process

Attribute Types

Denodo_db

Attribute Type	Description
vdbname	Database name in VDP.

Denodo_view

Attribute Type	Description
name	View name in VDP
vdbName	Database name in VDP.
qualifiedName	View identifier in Purview
catalogURL	Data Catalog URL of the view
viewType	Base view or derived view

Denodo_datasource

Attribute Type	Description
name	Data source name in VDP
vdbName	Database name in VDP
qualifiedName	Data source identifier in Purview

Denodo_column

Attribute Type	Description
name	Column name in VDP
vdbName	name of the database
viewName	View name in VDP
qualifiedName	Column identifier in Purview
userDescription	Column Description
data_type	Column Data type

Relationhip Types

Name	End1			End2		Category
denodo_db_view	name		database	name	db	Composition
	type		denodo_db	type	denodo_view
	cardinality		SET	cardinality	SINGLE
denodo_view_column	name		columns	name	view	Composition
	type		denodo_column	type	denodo_view
	cardinality		SET	cardinality	SINGLE
denodo_view_dependency	name		dependencies	name	used_by	AGGREGATION
	type		denodo_view	type	denodo_view_dependency
	cardinality		SET	cardinality	SINGLE
denodo_db_datasource	name		datasources	name	db	Association
	type		denodo_db	type	denodo_datasource
	cardinality		SET	cardinality	SINGLE
denodo_datasource_view	name		views	name	datasource	Composition
	type		denodo_datasource	type	denodo_view
	cardinality		SET	cardinality	SINGLE

Collections

Assets can be inserted into a Purview collection that already exists. Collections in Purview are used to organize the assets. The collection, where assets will be inserted, is configured in the input parameter collection.

Delete Outdate Assets

In synchronization, the Governance Bridge for Microsoft Purview can find obsolete assets that are not anymore in VDP. There is a parameter to decide what to do, when there are these obsolete assets, the forceDeletion parameter. When the value is false the application will only warn that other assets could be deleted, and the synchronization will not be done. When the value is true, the synchronization will be carried out and these assets will be deleted in Microsoft Purview.

Synchronize Denodo VDP with Microsoft Purview Platform instance

Once the Denodo Governance Bridge for Microsoft Purview is up and running (script denodo-purview-governance-bridge.sh|bat) it offers two methods that trigger the synchronization of Denodo Platform metadata with Microsoft Purview.

Service endpoint

The Denodo Governance Bridge for microsoft Purview offers an endpoint service that should be requested using an HTTPS POST method:

https://<server-host>:<server.port>/api/sync

The server.port is 8442 by default but the user can configure it in the application.properties file.

The request body should be a JSON object defining the collectionId where the Purview assets will be stored and the Denodo databases that will be synchronized. If a collection is not specified in the input, the assets will be created but not in a collection.  Example:

{    "collectionId": "8dxanz",    "databases": ["db1","db2"],    "forceDeletion": "false" }

Accordingly, the Content-Type header must be added:

Content-Type: application/json

The output shows information about created and un/modified asset counts. Example:

{   "databases" : {     "created" : 2,     "updated" : 0  },   "datasources" : {     "created" : 4,     "updated" : 0  },   "views" : {     "created" : 12,     "updated" : 0  },   "columns" : {     "created" : 266,     "updated" : 0  }   "deletedAssets": [] }

After the synchronization, the user will have the Denodo metadata available in Microsoft Purview:

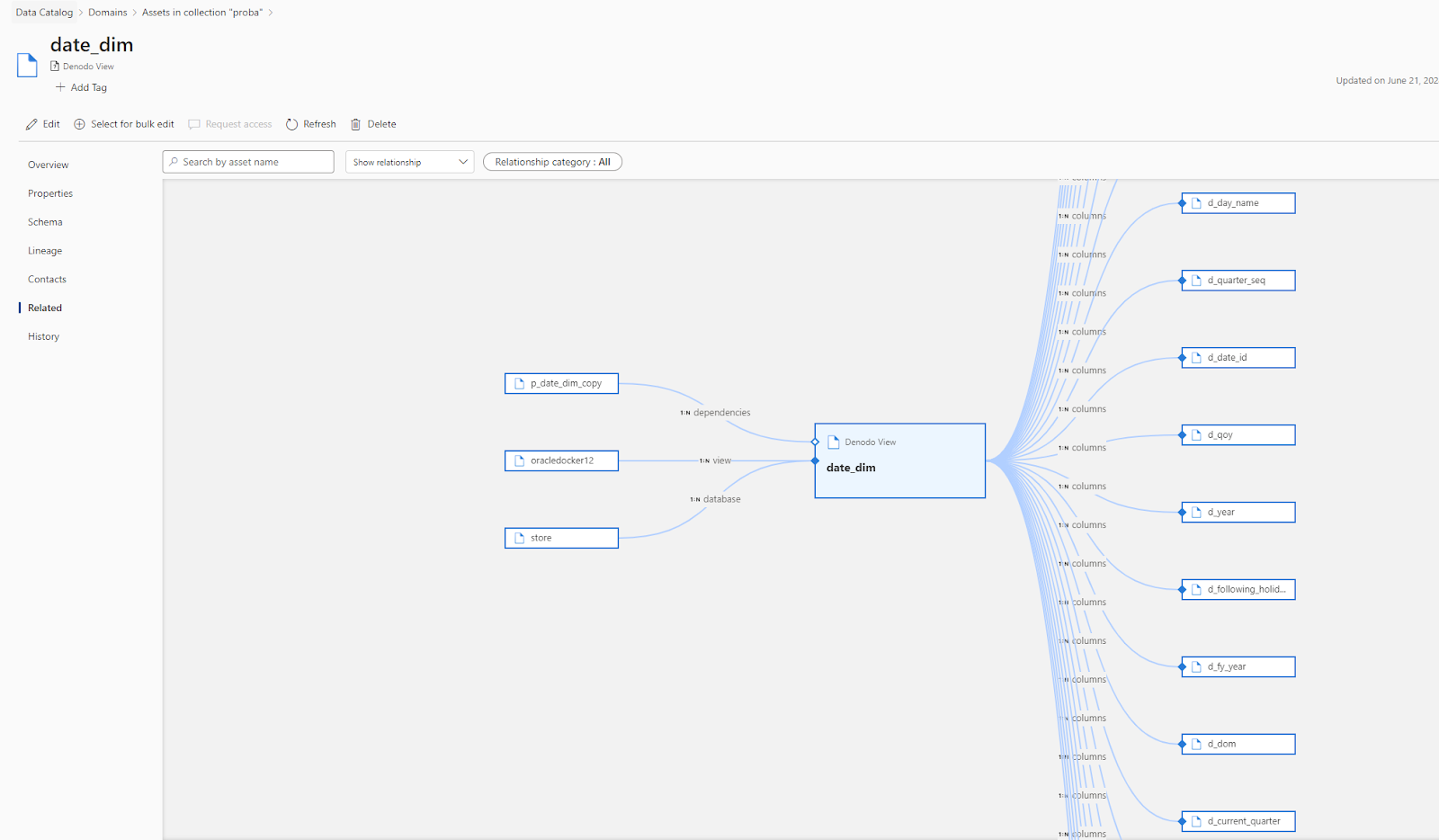

Figure 1 Denodo metadata in Microsoft Purview

Synchronization script

In the bin directory of the distribution, you will find the script execute the script denodo-purview-synchronize-governance-bridge.sh|bat. You can execute it to trigger the synchronization:

$ cd denodo-purview-governance-bridge-<VERSION> $ bin/denodo-purview-synchronize-governance-bridge.sh conf/input.json

This script uses curl for invoking the synchronization service endpoint of the Denodo Governance Bridge for Microsoft Purview. You can check if you have curl installed in your system using the command:

$ curl --version



If curl is not there you can install it from https://curl.haxx.se/dlwiz/.

The denodo-purview-synchronize-governance-bridge.sh|bat script needs a JSON file with a JSON object defining the collectionId where the Purview assets will be stored and the Denodo databases that will be synchronized.

Example:

{    "collectionId": "8dxanz",    "databases": ["db1","db2"],    "forceDeletion": "false" }

The output shows information about created, updated and deleted asset counts. Example:

$ bin/denodo-purview-synchronize-governance-bridge.sh conf/input.json HTTP/1.1 200 Content-Type: application/json Transfer-Encoding: chunked Date: Fri, 28 Jun 2024 08:12:17 GMT {"databases":{"created":2,"updated":0,"deleted":0},"datasources":{"created":4,"updated":0},"views":{"created":12,"updated":0},"columns":{"created":266,"updated":0},"deletedAssets": []}

Note that the output of the script also includes the HTTP response headers. You can check the HTTP status code to see if the export process was OK.

Limitations

• The user is responsible for being consistent with the collection where the databases are synchronized. Because if you make several synchronizations over distinct collections, you can create assets in several Purview collections.

• The REST API of  Purview doesn´t allow insert relationships in batch mode, this makes the synchronization slower.

• The lineage is only supported at the view level.

• The synchronization of tags is not supported by Governance Bridge for Microsoft Purview.

How to encrypt passwords

The Denodo Governance Bridge for Microsoft Purview expects encrypted passwords in the application.properties to appear surrounded by ENC(...). You can compute these values using the Jasypt CLI tools, and use the DENODO_EXPORT_ENCRYPTION_PASSWORD environment variable, or Java system property, to communicate the encryption password to the Denodo Governance Bridge.

This way, you can use encrypted passwords in the application.properties file:

... password=ENC(s2FdirMK4QORq1HZ6tcTTQ==) ...



These are the steps for encrypting passwords:

1. Download Jasypt CLI tools.

2. Choose an encryption password, e.g., mypassword.

3. Go to jasypt/bin.

4. Run encrypt.bat with the input parameter and password parameter:

• input parameter - this is the string you want to encrypt.

• password parameter - this is the password that Jasypt is going to use to encrypt and decrypt the input parameter.

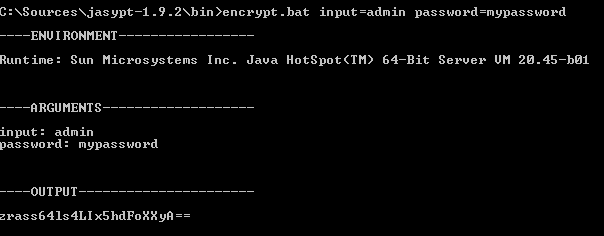

Your command should look like this:



Take note of the output. Example output: zrass64ls4LIx5hdFoXXyA==.

5. Open your application.properties file, replace the password you want to encrypt with  the output from Step 4: ENC(zrass64ls4LIx5hdFoXXyA==).

        Example in the application.properties file:

Before Jasypt: password=admin After Jasypt password=ENC(zrass64ls4LIx5hdFoXXyA==)

6. Add an environment variable, or Java system property to the Denodo Governance Bridge start script, with the name DENODO_EXPORT_ENCRYPTION_PASSWORD, and value of mypassword, but use your real encryption password.
