Goal

This document explains how to connect from Grafana to Denodo. Grafana is an open-source, general-purpose dashboard and graph composer that runs as a web application. It supports graphite, InfluxDB, and opentsdb as backends.

Content

Running Grafana

You can run Grafana in the cloud or installed on Windows, Mac, Linux, Docker, or ARM platforms:

  1. Download Grafana from https://grafana.com/grafana/download
  2. Start the server (<GRAFANA_HOME>/bin/grafana_server.sh|exe)
  3. Open the app in your browser, go to http://localhost:3000/login
  4. Login. Use admin/admin by default, but the GUI will ask you to change the password after the first login.

Setting up a Denodo Data Source in Grafana

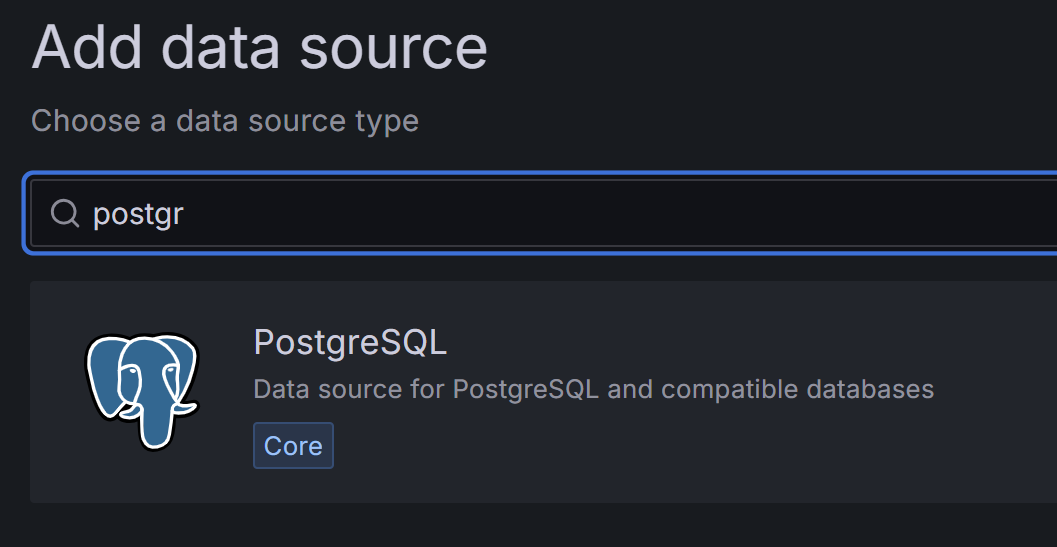

  • Click the “Add Data Source” button, then search for the PostgreSQL type.

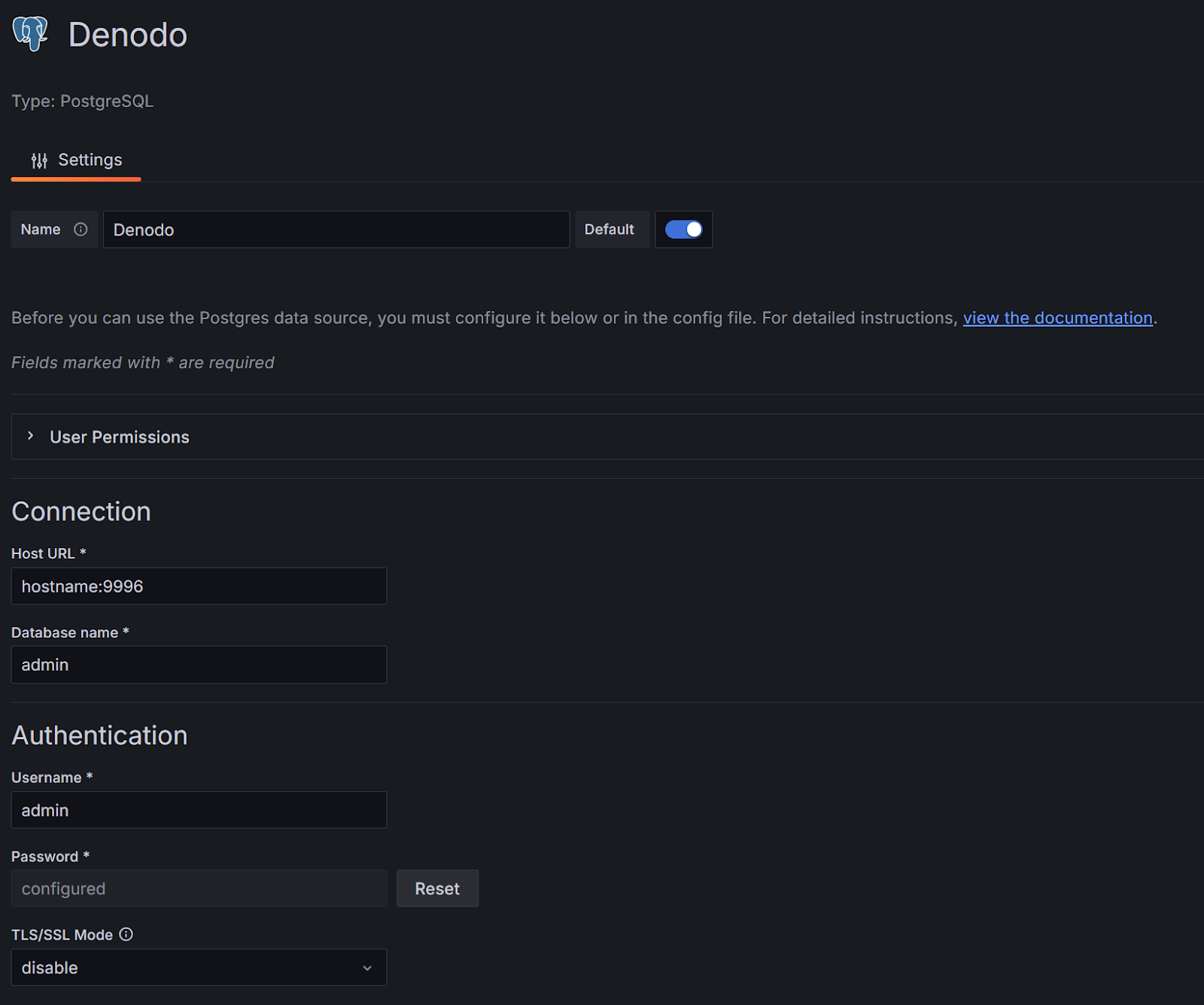

  • Click the “PostgreSQL” button and define these variables:
  • Name: Denodo
  • Host URL: <Denodo host name>:9996 (default ODBC port)
  • Database name: <virtual database name>
  • Username: <Denodo user>
  • Password: *******
  • TLS/SSL mode: use require or disable depending on whether you want to SSL or not.
  • Click “Save & Test”

Grafana’s Timeseries

To use Grafana’s Timeseries capabilities, you should have a timestamp column in the Denodo view you access from Grafana.

For instance, if you have a view with a column representing a date but of ‘text’ data type, you can convert the date string to timestamp value with the following function:

to_timestamp(‘format’, str value, locale)

With this string input ‘Tue Mar 29 2024 17:36:44 GMT’, it will look something like this:

to_timestamp('EEE MMM dd yyyy HH:mm:ss z', <input>, 'en_US')

You can find references for date formatting here: SimpleDateFormat.

You also need to make sure that the values used in Grafana are of a numeric type. You can convert those values using the cast function:

CAST(<value> AS FLOAT)

Creating a Dashboard Panel in Grafana

  • Click the “Add visualization” button in your selected dashboard.

  • Select the Denodo Data Source.
  • Click the “Add query” button and type your VQL query:

SELECT

    $__time("resourcepollingdate"), cpupercentage

FROM

  denodo_dashboard.server_resources
