Denodo’s Kafka Listener allows Denodo to listen to Kafka Events in real time. These Kafka events can be VQL Queries that Denodo can execute. The Goal is to use VQL Query Kafka events to query a view in Denodo that will call the Scheduler REST API to do a certain task, in our case starting a Scheduler job.

Create a Kafka Listener

To be able to listen to Kafka events in the first place, it is necessary to configure a Kafka Listener.

  • In either Denodo Design Studio or Denodo Virtual Dataport Administration Tool go to File > New > Listener > Kafka Listener

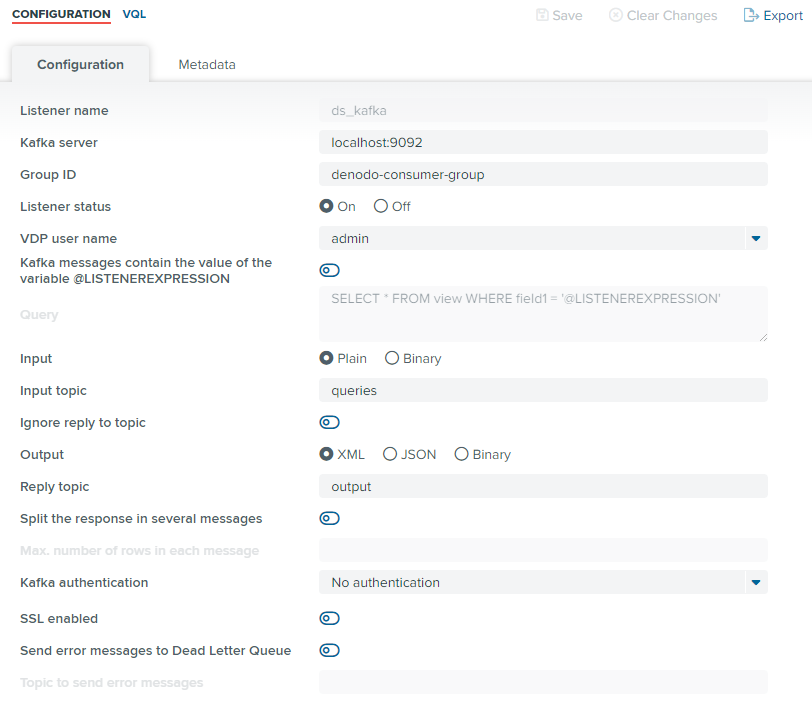

  • Configure your Kafka Listener, for this use case there are not many requirements:
  • Make sure Listener status is turned on.
  • Select the VDP User under whom you want to execute the queries passed through Kafka.
  • Specify your Input Topic and Reply Topic.

For more detailed information on how to configure a Kafka listener go to the Section Creating Kafka Listeners of the Virtual DataPort Administration Guide

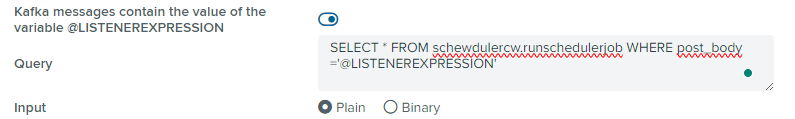

When creating the data sources and views to call the REST API you will have the option to work with an interpolation variable. This means you only need to create one view instead of multiple views if you want to start multiple scheduler jobs. You will find more information about that later in this topic. If you decide to do so you should also specify the SELECT statement by checking the option Kafka messages contain the variable @LISTENEREXPRESSION

SELECT * FROM <DenodoDataBase>.runschedulerjob WHERE post_body = ‘@LISTENEREXPRESSION’

This allows you to only insert the Post_Body of the PUT REST API into the Kafka Events as parameters.

To make sure your Kafka Listener is running go to Tools > Listeners > Kafka.

  • Under the Enabled Column you can see the status of the Listener

Denodo Scheduler REST API

Next we need to work with the Scheduler REST API. You can access the documentation under the following URL:

http://<host>:<port>/webadmin/denodo-scheduler-admin/swagger-ui/index.html

Your Scheduler Server and Scheduler Administration Tool have to be started to access the URL.

You can for example run the

GET /webadmin/denodo-scheduler-admin/public/api/jobs

Method to retrieve the id’s and project id’s of your jobs, which you will need to start them.

To trigger a Scheduler job there are two PUT APIs available. For changing the status of a single job it does not really matter which one you pick. However you can only use one of them to change the status of multiple jobs a the same time

  • PUT /webadmin/denodo-scheduler-admin/public/api/projects/{projectID}/jobs/{jobID}/status
  • This AP enpdoint changes the job status of a single job.

  • PUT /webadmin/denodo-scheduler-admin/public/api/projects/{projectID}/jobs/status
  • You can use this endpoint to change the status of multiple jobs, e.g. starting multiple jobs at the same time.

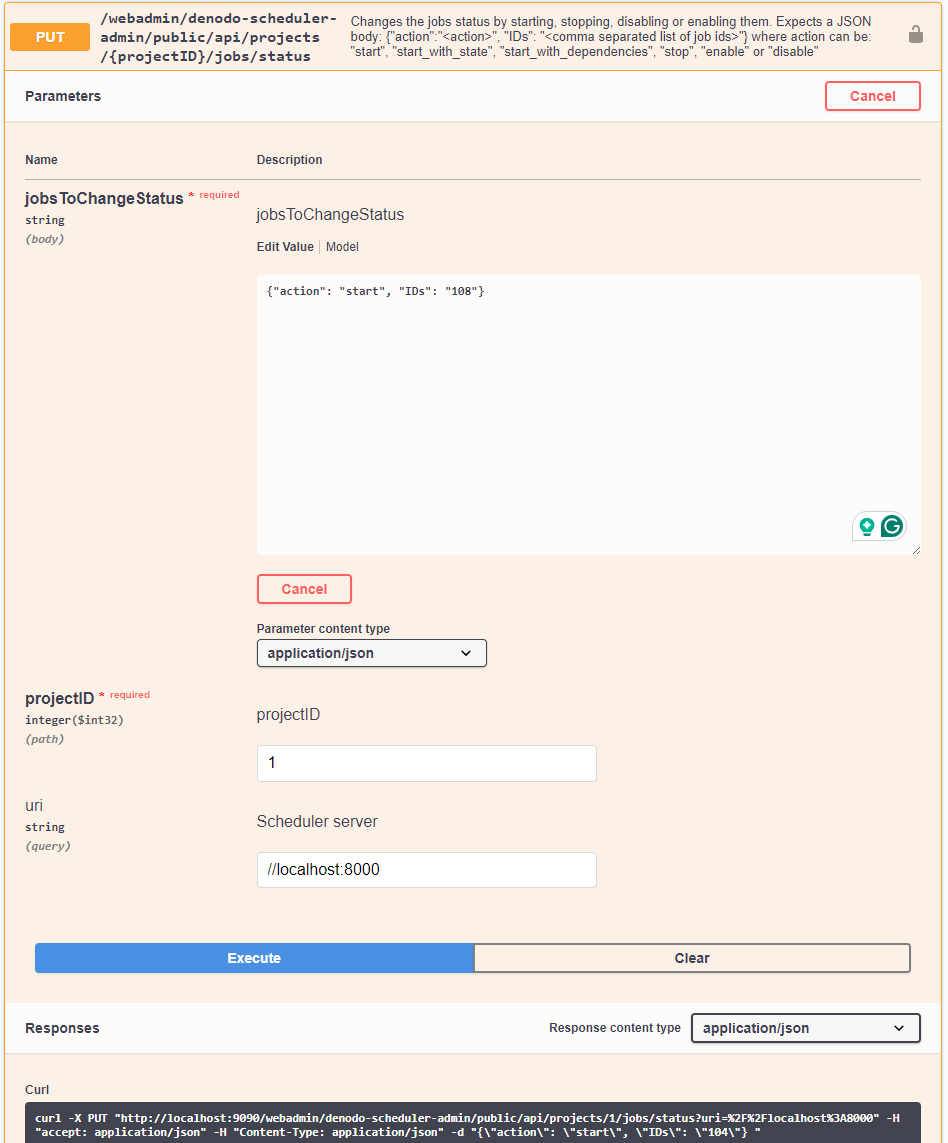

You can use the site to prebuilt your Request URL which you need in the next section of this guide. In the example below we choose the action start to trigger a Scheduler Job with the ID 108.

Creating a JSON data source

With the Request URL you can now create a JSON data source in Denodo.

  • Got to File > New > Data source > JSON.
  • Provide a Name to the connection.
  • Choose HTTP Client as your Data route.
  • Choose PUT as your HTTP Client.
  • Post your Request URL in the Base URL field.
  • In the Post body section choose application/json as your Content type.
  • Enter the JSON Body as described in the REST API documentation
  • IMPORTANT: add the backslash “\” character before your curly braces “{“ / “}”

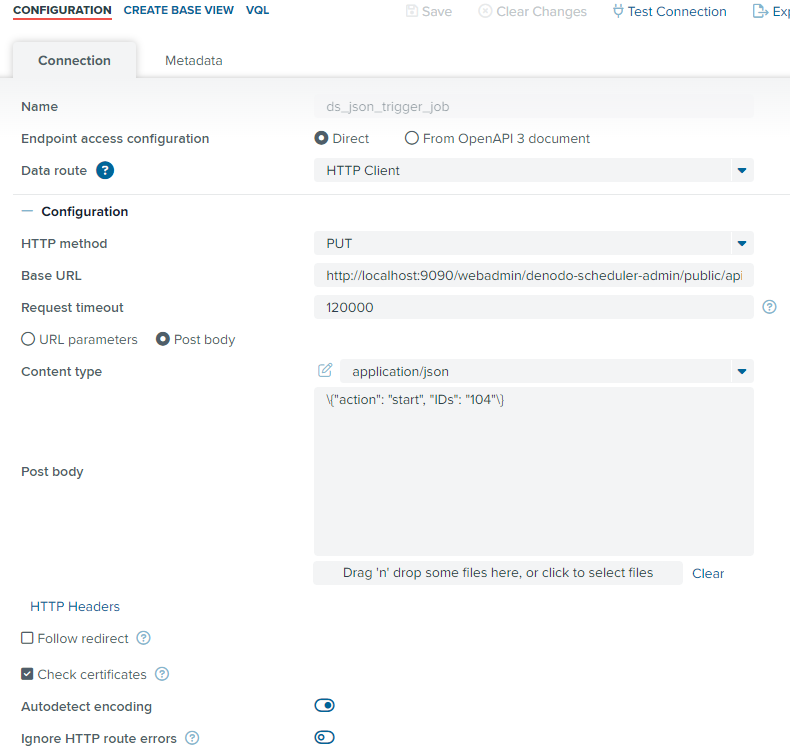

  • For reference look at the screenshot below
  • This is only needed when specifying the post_body directly in Content Type. If you want to work with interpolation variables this is not needed.
  • You can also specify an interpolation variable. This is recommended as you will not have to create a separate view for every single Post Body. An example is shown below in a screenshot.

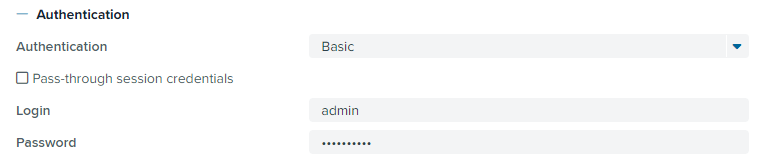

  • In the Authentication section provide the authentication details of your Denodo User.
  • NOTE: When testing the connection, Denodo will call the API and therefore run the scheduler jobs if the connection details are correct. Keep that in mind in case that is unwanted. You might want to change the action to enable/disable/stop to test the connection without triggering the job(s).

In the Screenshot above @{post_body} represents an interpolation variable.

Creating a view

Since the Scheduler API PUT Methods described above return no content but only change the jobs status, we cannot create the base view in the conventional graphical way.

We first have to create a JSON Wrapper with some output schema. After that we can create the views.

  • You can use the VQL Code below as a template.
  • Provide a Wrapper name of your choosing.
  • The DATASOURCENAME should be set to your JSON data source created before.
  • You can specify any OUTPUTSCHEMA. We need it to be able to create a base view since we can not create a base view without an Output.

If you have specified an interpolation variable in the data source creation, your VQL code has to be adjusted. Templates and Examples are provided below.

#For creating a view without an interpolation variable:

CREATE OR REPLACE WRAPPER JSON <WRAPPER_NAME>

    DATASOURCENAME=<DATA SOURCE NAME>

    TUPLEROOT '/JSONFile'

    OUTPUTSCHEMA (

     <output_name>=<output>:’<Java_data_type>

    );

#Example:

CREATE OR REPLACE WRAPPER JSON runschedulerjob

    DATASOURCENAME=runschedulerjob108

    TUPLEROOT '/JSONFile'

    OUTPUTSCHEMA (

        iss = 'iss' : 'java.lang.String'

    );

#For creating a view with an interpolation variable:

CREATE OR REPLACE WRAPPER JSON <WRAPPER_NAME>

    DATASOURCENAME=<DATA SOURCE NAME>

    TUPLEROOT '/JSONFile'

    ROUTE HTTP 'http.CommonsHttpClientConnection,120000' PUT ''

    POSTBODY '@{post_body}'

    OUTPUTSCHEMA (

        post_body = 'post_body' : 'java.lang.String' (OBL) (DEFAULTVALUE='{"action": "<default_action>","IDs": "<default_IDs>"}') EXTERN

    );

#Example:

CREATE OR REPLACE WRAPPER JSON runschedulerjob108

    DATASOURCENAME=runschedulerjob108

    TUPLEROOT '/JSONFile'

    ROUTE HTTP 'http.CommonsHttpClientConnection,120000' PUT ''

    POSTBODY '@{post_body}'

    OUTPUTSCHEMA (

        post_body = 'post_body' : 'java.lang.String' (OBL) (DEFAULTVALUE='{"action": "start","IDs": "108,99,1"}') EXTERN

    );

Next we can create a base view using the Wrapper we just created.

  • Use the VQL Code below as a template again.
  • Provide a view name.
  • Choose your I18N setting.

#For creating a view without an interpolation variable:

CREATE OR REPLACE TABLE <VIEW_NAME> I18N <INTERNATIONALIZATION> (

        iss:text

    )

    CACHE OFF

    TIMETOLIVEINCACHE DEFAULT

    ADD SEARCHMETHOD <WRAPPER_NAME>(

        I18N <INTERNATIONALIZATION>

        CONSTRAINTS (

             ADD iss NOS ZERO ()

        )

        OUTPUTLIST (iss)

        WRAPPER (<WRAPPER_NAME>)

    );

#Example

CREATE OR REPLACE TABLE runschedulerjob108 I18N de_euro (

        iss:text

    )

    CACHE OFF

    TIMETOLIVEINCACHE DEFAULT

    ADD SEARCHMETHOD runschedulerjob108(

        I18N de_euro

        CONSTRAINTS (

             ADD iss NOS ZERO ()

        )

        OUTPUTLIST (iss)

        WRAPPER (json runschedulerjob108)

    );

#Example for creating a view with interpolation variables

CREATE OR REPLACE TABLE runschedulerjob I18N de_euro (

        post_body:text (extern)



    )

    CACHE OFF

    TIMETOLIVEINCACHE DEFAULT

    ADD SEARCHMETHOD runschedulerjob(

        I18N de_euro

        CONSTRAINTS (

                   ADD post_body (=) OBL ONE

        )

        WRAPPER (json runschedulerjob)

    );

Run the Scheduler job via Kafka Event

You have now set up everything necessary to be able to run Scheduler jobs via Kafka events.

Create a new Event under the topic you have subscribed to under the Kafka Listener.

Kafka Event Example for working without the interpolation variable.

Kafka Event Example for working with the interpolation variable and the @LISTENEREXPRESSION set up in the Kafka Listener.

If the Kafka Listener is running and picking up the Event, the Scheduler job will be started.

References

Creating Kafka Listeners

Scheduler REST Client API

JSON Sources
